Rich 12v 100 Watt Solar Panel

$119.99

  • Each solar panel includes standard solar connectors that extend from the junction box affixed to the back of each panel
  • Easy installation and handling for various applications: 14 pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts, and compatible with on-grid and off-grid inverters
  • Excellent low light performance on cloudy days, mornings and evenings; certified to withstand challenging environmental conditions
  • Built with strong high transmission anti-reflective coated tempered glass and anodized aluminum frame

-

SKU: RS-M100 Category: Tags: ,

Description

  • Features

    • 9 buss bar solar cell configuration
    • Mono PERC Technology
    • Lightweight anodized aluminum frame
    • High Transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug and play junction box

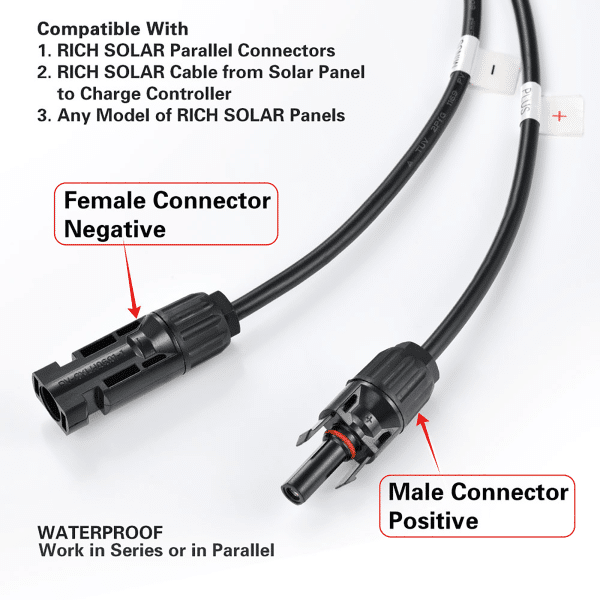

    • Industry standard quick connect cables work in series or in parallel
    • Certified to withstand challenging environmental conditions
    • Excellent low light performance on cloudy days, mornings and evenings

    Installation

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty

    • 25 year limited power output

    Built-in Components

    • RICH SOLAR 200 watt monocrystalline solar panel
    • Panel leads (pair): 3 feet each
    • IP65 rated waterproof junction box
    • IP67 rated waterproof connectors
    • Bypass diodes built-in the junction box

    Specifications

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 37.6V
    • Maximum Power Current(Imp): 5.32A
    • Open Circuit Voltage(Voc): 45.4V
    • Short Circuit Current(Isc): 5.83A
    • Maximum System Voltage(Vmax): 1000VDC
    • Temperature Range: -40°C ~ 90°C
    • Max Series Fuse Rating: 15A
    • Weight: 26.5 lb
    • Dimensions: 58.7 x 26.8 x 1.4 in
Box icons created by Smashicons - Flaticon

Free Shipping on $99+

Ground shipping anywhere in the continental United States.

Price Match Guarantee

Found it somewhere for less? Email us a link and we'll match it.

Lifetime Tech Support

Questions, concerns, and updates: We're here for you.

Additional information

Weight 16.5 lbs
Dimensions 46.7 × 20.1 × 1.4 in
