Rich 12v 200 Watt Solar Panel

$219.99

  • Each solar panel includes standard solar connectors that extend from the junction box affixed to the back of each panel
  • Easy installation and handling for various applications: 14 pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts, and compatible with on-grid and off-grid inverters
  • Excellent low light performance on cloudy days, mornings and evenings; certified to withstand challenging environmental conditions
  • Built with strong high transmission anti-reflective coated tempered glass and anodized aluminum frame

-

SKU: RS-M200 Category: Tags: ,

Description

Features

  • 9 buss bar solar cell configuration
  • Mono PERC Technology
  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug and play junction box
  • Industry standard quick connect cables work in series or in parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low light performance on cloudy days, mornings and evenings

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty

  • 25 year limited power output

Built-in Components

  • RICH SOLAR 200 watt monocrystalline solar panel
  • Panel leads (pair): 3 feet each
  • IP65 rated waterproof junction box
  • IP67 rated waterproof solar connectors
  • Bypass diodes built-in the junction box

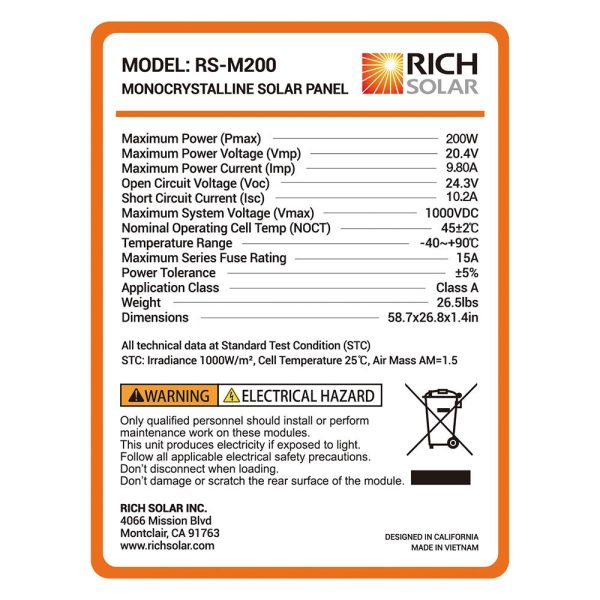

Specifications

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 20.4V
  • Maximum Power Current(Imp): 9.80A
  • Open Circuit Voltage(Voc): 24.3V
  • Short Circuit Current(Isc): 10.2A
  • Maximum System Voltage(Vmax): 1000VDC
  • Temperature Range: -40°C ~ 90°C
  • Max Series Fuse Rating: 20A
  • Weight: 26.5 lbs
  • Dimensions: 58.7 x 26.8 x 1.4 in
