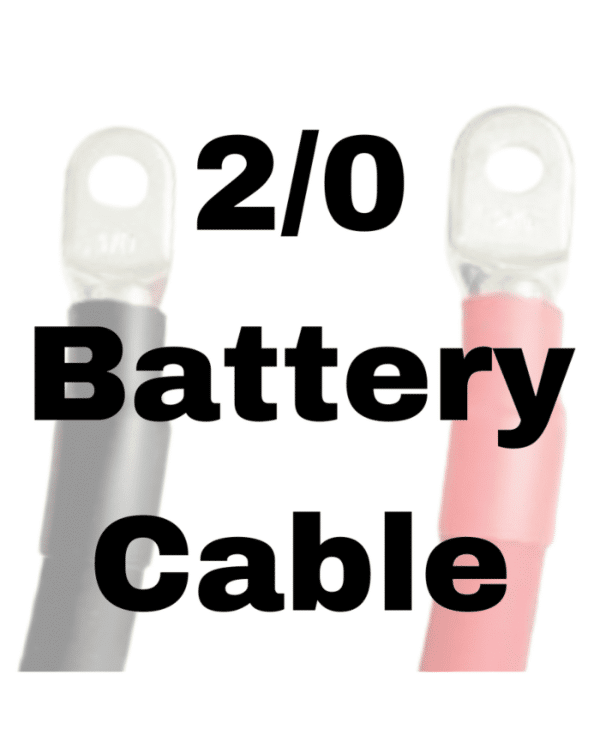

(UL) 2/0 AWG Marine Grade Tinned Copper Flexible Battery Cable

$6.88$13.76

00 Gauge (2/0 AWG) Marine Grade Tinned Copper Battery Cable UL 1426

SKU: N/A Category: Tags: ,
Introducing our multi-rated, multi-purpose, flexible, real copper battery cable. This wire has multiple approvals for use in many electrical installation making it a very unique cable. From the pure electrolytic copper stranding to the durable yet flexible insulation, this cable has been designed to impress.
Our UL listed battery cable carries ratings allowing it to be used as marine battery cable listed as UL1426 Boat Cable which maintains a BC-5W2 temperature rating of 105C dry and 75C wet. This wire can be continuously submerged in water with no issues. This fine battery cable exceeds the requirements of ABYC and the USCG (US Coast Guard) for installation on boats.
The copper conductor features stranding which is tin plated to resist corrosion. Flexible Type III, Class K stranding is designed to absorb vibration found in motive environments such as automotive and marine thus protecting the cable from premature failure.
FEATURES:
  • Meets all applicable boat wiring regulations from ABYC and US Cost Guard for use on boats
  • Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
  • Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
  • MADE IN THE USA!!!
BENEFITS OVER WELDING CABLE:
  • Full AWG Size OFC Copper Conductor
  • Electroplated tinned copper stranding to resist corrosion
  • UL Listed – Quality Strictly Controlled
  • Superior Oil Resistance of PVC where EPDM on many welding cables is a poor insulator against oil
  • Meets and Exceeds USCG and ABYC guidelines for Marine Uses
  • UL Listed as water resistant
BENEFITS OVER CCA POWER WIRE:
Our cable is Copper…REAL COPPER but watch out for other “CCA Cable” as CCA Means Copper Clad Aluminum so you’d be using Aluminum which is a poor conductor compared to this pure copper cable! You have to use larger sizes of aluminum CCA cable, approximately 2 sizes larger to get close to the same power delivery as real copper cable! If you care about maximum power use our cable!
FINAL POINTERS ON LUG SIZING:
Most threaded stud batteries will have either a 5/16 or 3/8 inch stud. Most of the time the negative will be 5/16 so if the positive is the same size it is also 5/16, but if your battery stud is larger on the positive it will most likely be a 3/8.ย  There are exceptions to the rule so please contact the manufacturer or measure. You can search online for bolt sizing tables which will help.
If you have questions about cable sizing and whether this is the correct size feel free to send us a message and we will do our best to answer you or at a minimum steer you in the right direction.
Color

Red, Black, Red & Black
