Power Post Junction Studs with Small Base
Power Post Junction Studs with Small Base
Power Post Junction Studs with Small Base
  1. Power Post Junction Studs with Small Base
  2. Power Post Junction Studs with Small Base
  3. Power Post Junction Studs with Small Base

Power Post Junction Studs with Small Base

$3.60 – $11.58

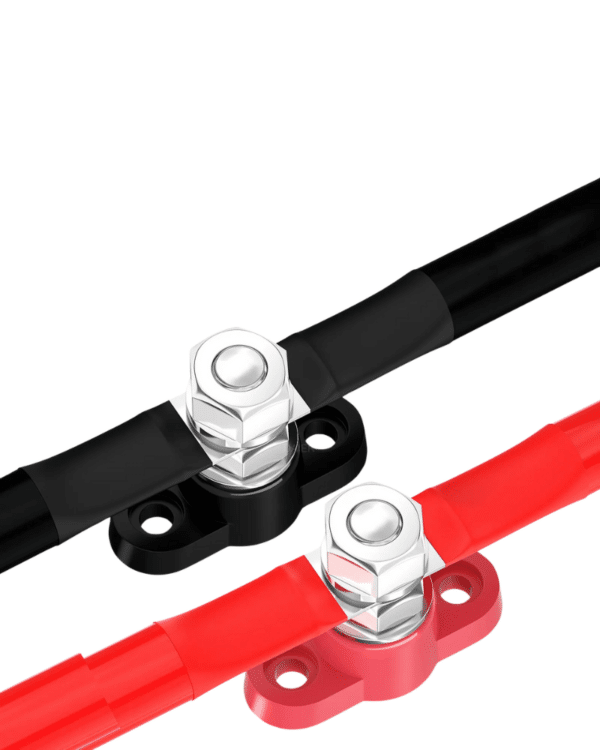

  • Used to connect two or more cables
  • Hook up negative return lines to single cable
  • Max Amperage: 160 amps @ 12 vdc
  • Max Voltage: 48 vdc
  • Available in multiple stud sizes
  • Base material : Glass-Filled nylon
  • Available Colors : Red / Black
  • All Stainless Hardware: post, nuts, washers
SKU: N/A Category: Tag: Brand:
Junction studs available in various stud sizes of
  • #10(3/16″)
  • 1/4 inch
  • 5/16 inch
  • 3/8 inch
Junction stud individual dimensions are:
Length: 2.080 inch
Width: 1.024 inch (widest part is where stud is)
Height: 1.647 inch
Screw Holes: 1.357 inch center to center apart (#10 screw size)
**Screws NOT INCLUDED on individual junction stud purchases

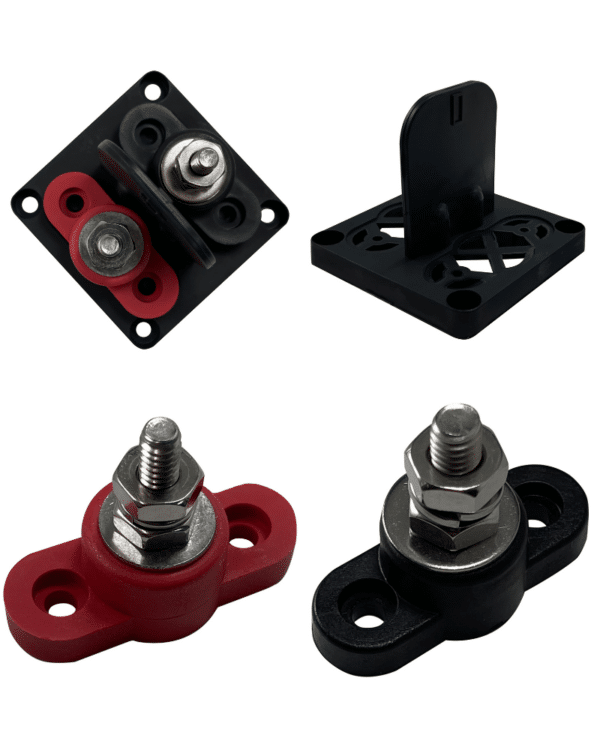

    if a base is purchased it comes with 10 screws – 4 to hold the junction studs to the base, 2 to hold the middle separator to the base and 4 to attach the base to your surface

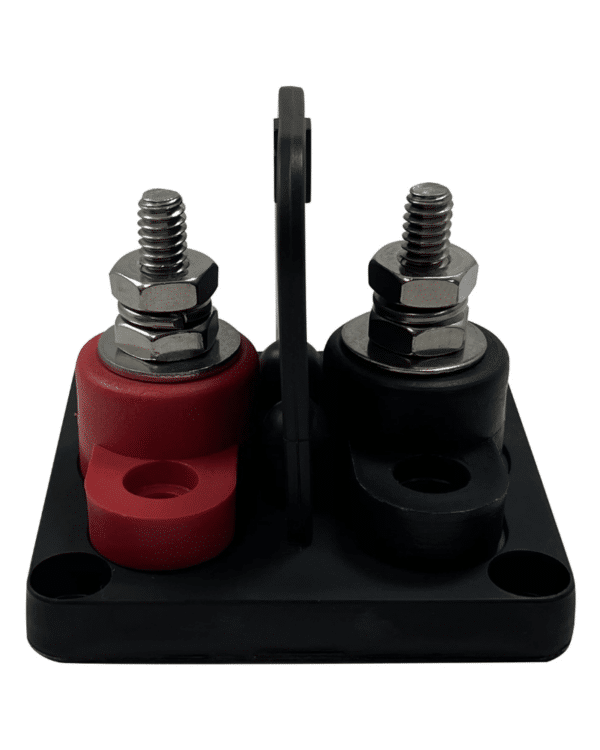

Mounting base dimensions are:
Length: 2.623 inch
Width:  2.623 inch
Height: 2.244 inch
Screw Holes: 2.188 inch center to center apart (#10 screw size)
Screws Included: Qty 10 screws included – 4 to hold the junction studs to the base, 2 to hold the middle separator to the base and 4 to attach the base to your surface. The screws are 10-16 by 1/2 inch long combo pan-head, zinc plated, sheet metal screws
