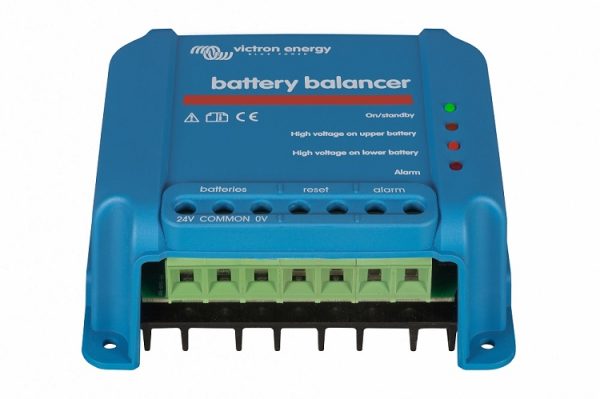

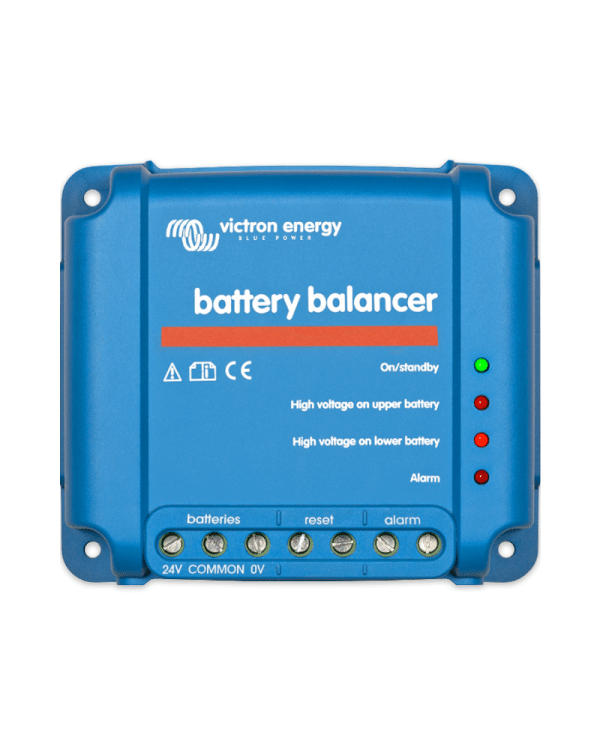

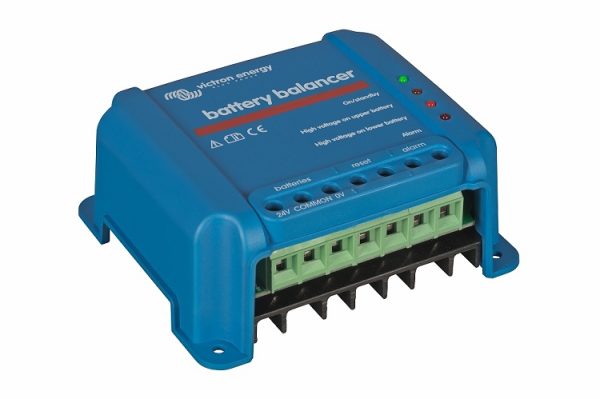

Victron Battery Balancer
  1. Victron Battery Balancer

Victron Battery Balancer

Original price was: $57.00.Current price is: $48.45.

For 24 volt and upward battery banks. Multiple balancers needed for higher voltages. The battery balancer ensures the charge is distributed evenly between individual batteries of a larger bank
  • 5 Year Warranty Included
  • Additional 5 Year Warranty available – 10 year total
SKU: BBA000100100 Category: Tags: ,

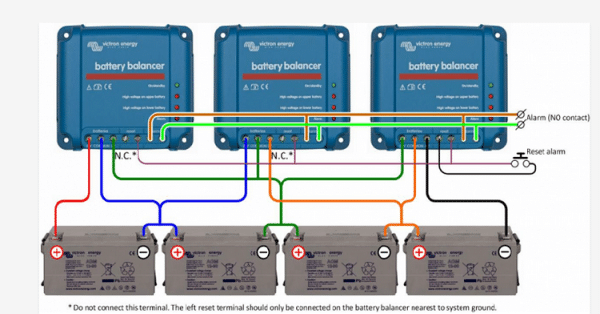

The Battery Balancer equalizes the state of charge of two series connected 12 V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24 V battery system increases to more than 27 V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1 A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge. If needed, several balancers can be paralleled. A 36 V battery bank can be balanced with two Battery Balancers and a 48 V battery bank can be balanced with three Battery Balancers.

Box icons created by Smashicons - Flaticon

Free Shipping on $99+

Ground shipping anywhere in the continental United States.

Price Match Guarantee

Found it somewhere for less? Email us a link and we'll match it.

Lifetime Tech Support

Questions, concerns, and updates: We're here for you.

Weight 0.88 lbs
Dimensions Length: 4.45 in Width: 1.85 in Height: 3.94 in

Specifications

Victron Battery Balancer
Input voltage range Up to 18 V per battery, 36 V total
Turn on level 27,3 V +/- 1%
Turn off level 26,6V +/- 1%
Current draw when off 0,7 mA
Midpoint deviation to start balancing 50 mV
Maximum balancing current 0,7 A (when deviation > 100 mV)
Alarm trigger level 200 mV
Alarm reset level 140 mV
Alarm relay 60 V / 1 A normally open
Alarm relay reset Two terminals to connect a push button
Over temperature protection yes
Operating temperature -30 t0 +50 øC
Humidity (non condensing) 95%
Enclosure
Colour Blue (RAL 5012)
Connection terminals Screw terminals 6 mmý / AWG10
Protection category IP22
Weight 0,4 kg
Dimensions (h x w x d) 100 x 113 x 47 mm
Standards
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN61000-6-1, EN 55014-2
Automotive Directive EN 50498
